BioCel® III

Chưa có lượt đánh giá nào - Chưa có câu hỏi nào - 405

Thương hiệu:
AAF
Sản xuất tại:
Malaysia
Mã HH:
Đơn vị tính:
Cái

Yêu cầu báo giá

Tổng quan về sản phẩm

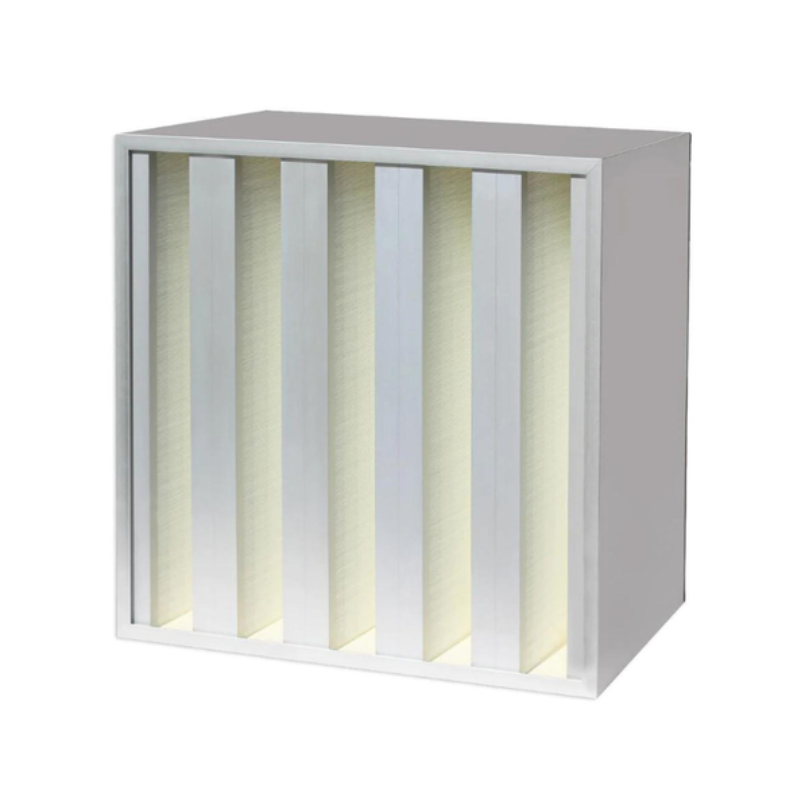

The highly efficient BioCel III filter has a V-shaped configuration with optimized media packs of fiberglass that are suitable for high airflow rates.

Product Overview

E10 & E11 classification in accordance with EN1822
4000 CMH air capacity
Low energy consumption
Long service life

Typical Applications

Commercial Buildings
Data Centers
Food and Beverage
Healthcare
Industrial
Schools and Universities

Specification

EN1822: E10, E11
Filter Depth (mm): 292
Media Type: Fibreglass
Frame Material: Galvanised Steel
Separator Style: Hot Melt
Special Size Available: No
Antimicrobial Available: No
Header Type: None Header
Gasket Material (Standard): Neoprene
Gasket Material (Optional): PU. None
Recommended Final Resistance: 500 Pa
Max Operating Temperature: 70°C

Chọn sản phẩm

Giá	Tên HH	Mã HH	EN1822	Efficiency	Media Type	Frame Material	Gasket Material	Gasket Position	Separator Stype	Antimicrobial	Header Type	Faceguard	Max Operating Temperature	Air Filtration Certification	Actual Size (HxWxD)	Face Velocity	Rated Airflow	Rated Initial Resistance	Recommended Final Resistance
Liên hệ	M473-205-1630	M473-205-1630	E10	≥ 85%	Fibreglass	Galvanised Steel	Neoprene	None	Hot Melt	No	None	No	70°C	UL 900	594x289x292mm	1.5m/s	2,000CMH	170Pa	500Pa
Liên hệ	M473-205-512	M473-205-512	E10	≥ 85%	Fibreglass	Galvanised Steel	Neoprene	None	Hot Melt	No	None	No	70°C	UL 900	594x594x292mm	1.5m/s	4,000CMH	170Pa	500Pa
Liên hệ	M473-205-004	M473-205-004	E10	≥ 85%	Fibreglass	Galvanised Steel	Neoprene	None	Hot Melt	No	None	No	70°C	UL 900	610x305x292mm	1.5m/s	2,000CMH	160Pa	500Pa
Liên hệ	M473-205-005	M473-205-005	E10	≥ 85%	Fibreglass	Galvanised Steel	Neoprene	None	Hot Melt	No	None	No	70°C	UL 900	610x610x292mm	1.5m/s	4,000CMH	160Pa	500Pa
Liên hệ	M475-205-1630	M475-205-1630	E11	≥ 95%	Fibreglass	Galvanised Steel	Neoprene	None	Hot Melt	No	None	No	70°C	UL 900	594x289x292mm	1.5m/s	2,000CMH	220Pa	500Pa
Liên hệ	M475-205-512	M475-205-512	E11	≥ 95%	Fibreglass	Galvanised Steel	Neoprene	None	Hot Melt	No	None	No	70°C	UL 900	594x594x292mm	1.5m/s	4,000CMH	220Pa	500Pa
Liên hệ	M475-205-004	M475-205-004	E11	≥ 95%	Fibreglass	Galvanised Steel	Neoprene	None	Hot Melt	No	None	No	70°C	UL 900	610x305x292mm	1.5m/s	2,000CMH	200Pa	500Pa
Liên hệ	M475-205-005	M475-205-005	E11	≥ 95%	Fibreglass	Galvanised Steel	Neoprene	None	Hot Melt	No	None	No	70°C	UL 900	610x610x292mm	1.5m/s	4,000CMH	200Pa	500Pa
