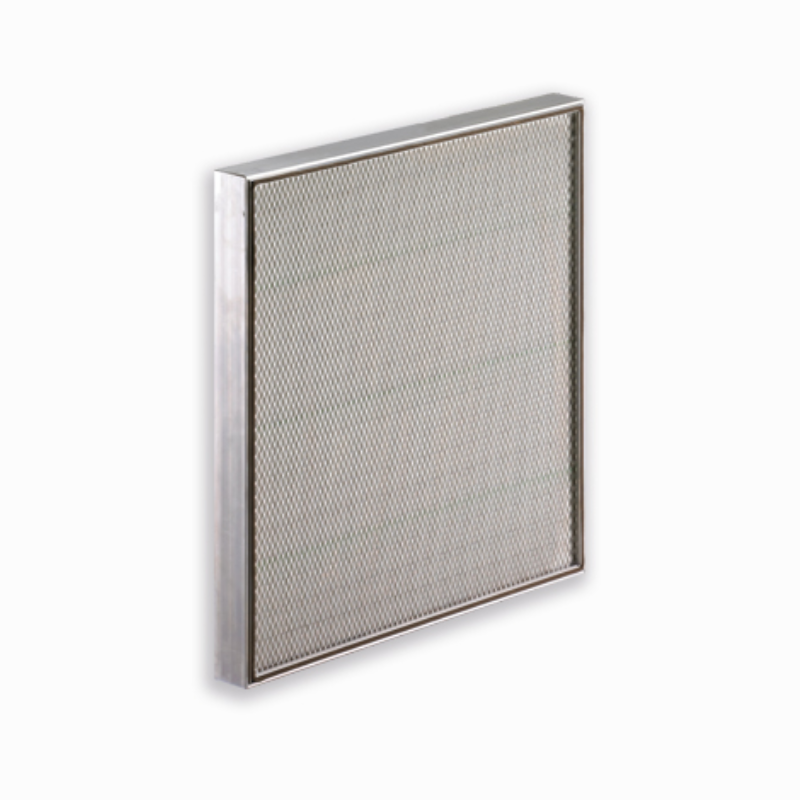

The VariCel II HT filter is designed for final filtration for drying ovens in the automotive industry.
Product Overview
-
Minipleat with ribbon separator
-
Panel filter with aluminium extrustion frame
-
Silicon free construction
-
385°C maximum temperature
Typical Applications
Specification
-
EN779: M6 - F8
-
ASHARE 52.2: MERV 11 - 14
-
Filter Depth (mm): 55, 78
-
Media Type: Fibreglass
-
Frame Material: Aluminium
-
Separator Style: HT Proseal Tech
-
Gasket Material: Glass Rope
-
Special Size Available: Yes
-
Antimicrobial Available: No
-
Header Type: None Header
-
Recommended Final Resistance: 450 Pa
-
Max Operating Temperature: 385°C
